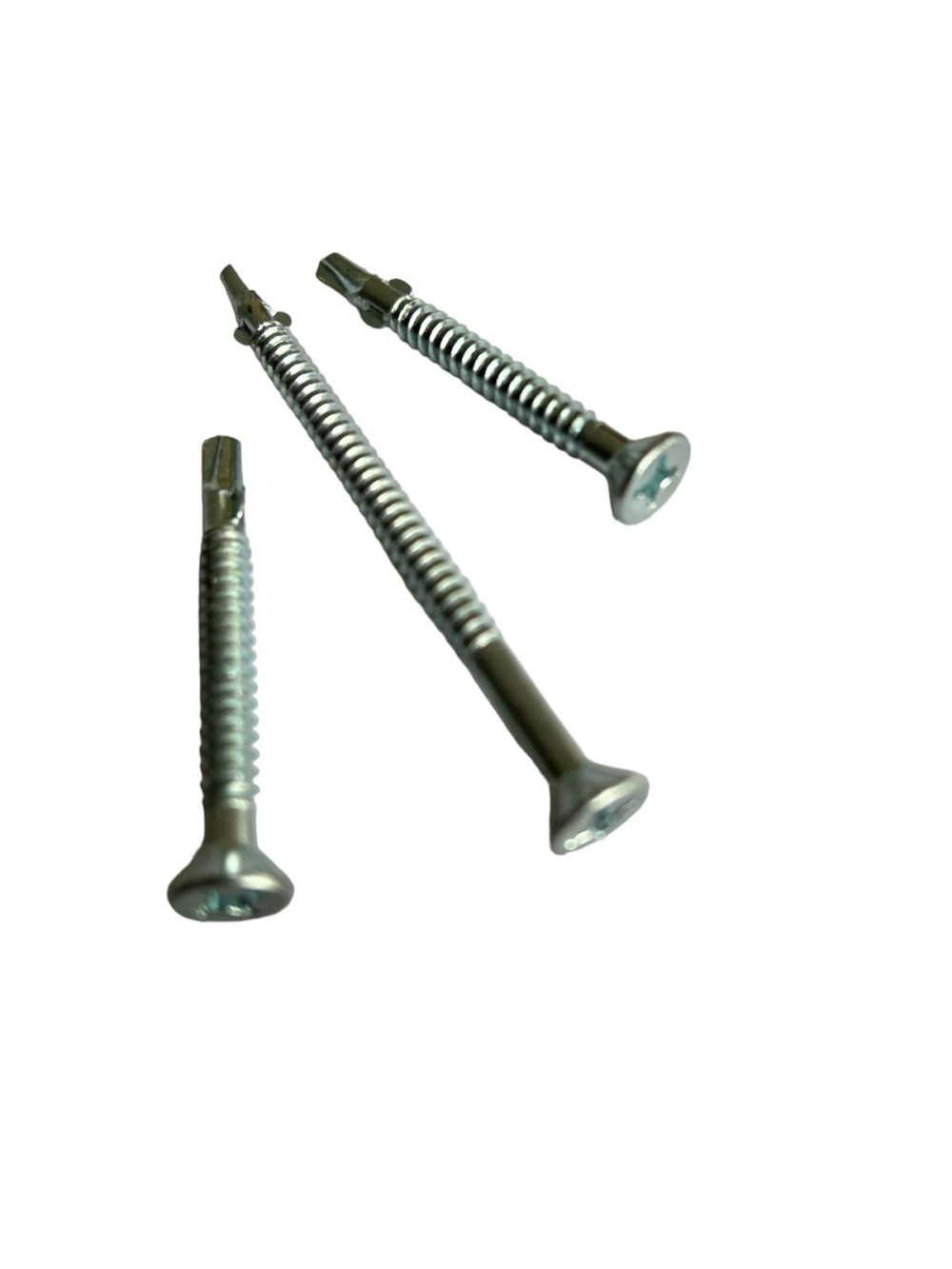

Wing Drillscrews

Winged Drillscrews for wood to metal application. Drills and fastens in one fast operation. Designed to give a positive fix into steel from 1.5mm up to 12mm thick. Winged Drillers have been precision engineered to fix timber to steel.

View Technical Specification

Get In Touch

Technical Information

Applications
Fixing all grades of timber and plywood to hot and cold rolled steel.

Head Styles
Countersunk Phillips recess head No.2 & 3.
Heads are self embedding

Benefits
Reamer wings produce a clearence thread through timber, breaking off as they hit the steel, giving a positive fix in thick and thin steel.

Specifications
Manufactured from Carbon Steel heat treated and bright Zinc plated 12 microns and A2 Grade 304 St/Steel.

Carbon Steel				Stainless Steel
Light Section Steel 1.5mm to 5.0mm		Heavy Section 5.0mm to 12.0mm		Light Section Steel 1.5mm to 5.0mm		Heavy Section 5.0mm to 12.0mm
Code	Size	Code	Size	Code	Size	Code	Size
WDLS38	5.5X38	WDHS60	5.5X60	WD-BM-LS45	4.8X45	WD-BM-HS60	5.5X60
WDLS45	4.8X45	WDHS85	5.5X85	WD-BM-LS65	5.5X70	WD-BM-HS80	5.5X80
WDLS50	5.5X50	WDHS109	5.5X109	WD-BM-LS125	5.5X125	WD-BM-HS150	5.5X150
WDLS60	5.5X60	WDHS120	5.5X120	WD-BM-LS150	5.5X150	WD-BM-HS180	5.5X180
WDLS85	5.5X85	WDHS150	5.5X150	WD-BM-LS180	5.5X180
WDLS109	5.5X109	WDHS180	5.5X180	WD-BM-LS200	5.5X200
WDLS120	5.5X120	WDHS200	5.5X200
WDLS150	5.5X150
WDLS180	5.5X180
WDLS200	5.5X200
